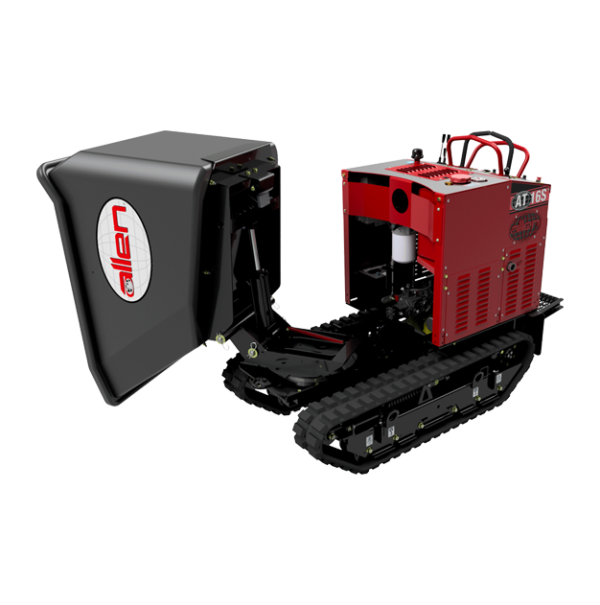

AT16S Track Dumper

The AT16S is the first 16 cu. ft. capacity, low maintenance, fully hydraulic swivel track buggy offered by Allen Engineering. This buggy comes fully equipped with lights, two-inch tubular frame, and robust 2,500 lb payload capacity. With a 180-degree pivoting dump, this buggy can place your material exactly where you need it. Boasting dual lever controls, the steering of this buggy becomes more effortless and ergonomic for the operator.

Description

ENGINE – IGX800 EFI Honda
HORSEPOWER CLASS – 24.9 hp / 18.5 kW
STARTER – Electric
FUEL TYPE – Gasoline
FUEL CAPACITY – 7 gal / 26.4 L
TOP SPEED – 4-6 mph / 6-10 kph
PAYLOAD – 2,500 lb / 1,135 kg
BUCKET CAPACITY – 16 cu. ft. / 0.45 cu. m
DUMP ANGLE – 90º
DUMP/RETURN SPEED EMPTY – 15 seconds
PIVOT ANGLE – 0º
WEIGHT – 1,930 lb / 875 kg
DIMENSIONS (L X W X H) – 102.5 x 34.6 x 57.4 in / 260 x 87.8 x 145 cm
