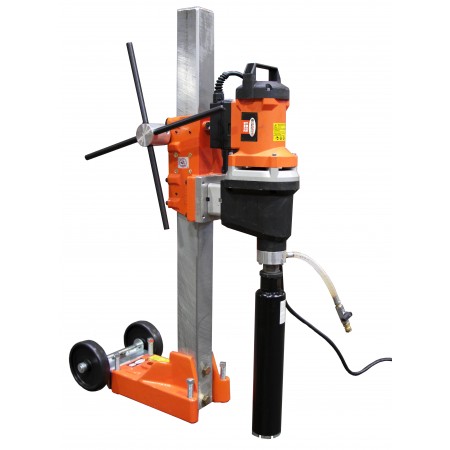

Cimline M-2 Heavy Duty Core Rigs

  • Heavy duty rig for larger jobs and the professional driller
  • Dual switch/outlet control panel with amp meter (except for CB700 models with LED amp meter)
  • 2-7/8” precision made, chrome plated square column (mast)
  • Vacuum pump for quick mounting to flat surface without drilling an anchor hole (Included with combination rig)
  • Combo base is a quick change over from vacuum to anchor base
  • 6” wheels for easy mobility
  • 4 Leveling Screws on base
  • Larger mast to withstand high torque and large diameter bits
  • The 4-spoke handle allows the operator to easily apply feed pressure
  • Optional roller carriage allows for more precise drilling
  • Autofeed option available
Add to quote
Categories: , ,

Description

Engine/Motor Model Motor/Engine Power Engine/Motor Make Motor RPM Rig Type Part Number Catalog Number
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig with add-on vacuum base and vacuum pump 4245107 81057
DK22 23 amp, 110 volt Weka 300/640/960 Complete rig with add-on vacuum base and vacuum pump 4241068 47426
DK22S 23 amp, 110 volt Weka 420/880/1300 Complete rig with add-on vacuum base and vacuum pump 4241069 50007
DK22 23 amp, 110 volt Weka 300/640/960 Complete rig without vacuum pump 4241088 73291
DK22S 23 amp, 110 volt Weka 420/880/1300 Complete rig without vacuum pump 4241089 75275
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Anchor rig 4245106 81062
DK22S 23 amp, 110 volt Weka 420/880/1300 Anchor rig 4241011 52247
CB733 20 amp Core Bore 550/1000/1600 Complete rig with add-on vacuum base and vacuum pump 4245118 39330
CB733 20 amp Core Bore 550/1000/1600 Anchor rig 4245117 39324
